Technical Details display.
Model ATEM156 Screen Size 15.6″ IPS Color Depth 16.7M colors (8-bit) Resolution 1920 × 1080 Pixels Pixel Pitch 0.17925 (H) X 0.17925 (V) mm Aspect Ratio 16:9 Brightness 250cd/m² Contrast Ratio 800:1 LED Backlight Viewing Angle 85°/85°(L/R) 85°/85°(U/D)
Input & Output
4 X HDMI HDMI (Support 4K 30Hz) Audio Out Headphone Stereo 3.5mm Tai
HDMI Format Support
480i/576i/480p/576p 720P (60/59.94/50/30/29.97/25/24/23.98) 1080i (60/59.94/50) 1080P (60/59.94/50/30/29.97/25/24/23.98) 3840 × 2160P (30/25/24), 4096 × 2160P (24)
Input Voltage DC12 ~ 24V Power Consumption 12W Working Temperature -10 °C ~ 50 °C Storage Temperature -20 °C ~ 60 °C Unit Dimensions (mm) 372L × 262H × 28.4D (mm) (No Stand) Unit Weight 1.57kg (Without Stand)
Realize ATEM Mini Multiview Monitoring
When your Switcher does not have a multiview function, such as ATEM Mini, then you may need an ATEM156. When making larger live products with multiple cameras, you can first connect the camera to the ATEM156 monitor, test capture images of each camera on the ATEM156 monitor, and then let the air flow, so you don’t have to. worry about broadcast content. Help you preview the image and avoid “blind clipping” channel status.

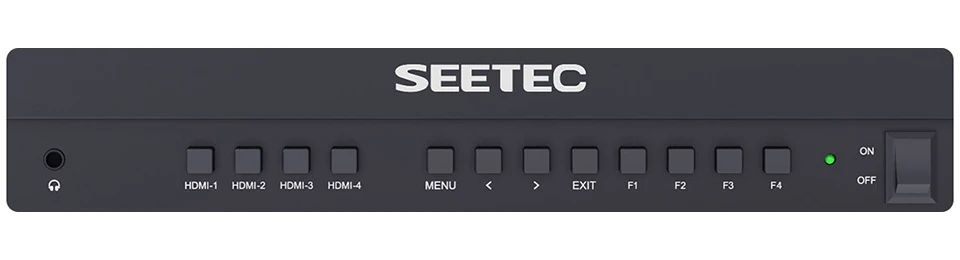

Easy Button Operation
When you’re busy shooting scenes, you need to be able to easily control the device, and the ATEM156 can meet your needs. It is equipped with a simple control panel, allowing you to be comfortable in the shooting process. With 4 split HDMI buttons, you can switch the source HDMI signal quickly; With 4 shortcut keys (F1~F4), you can customize shortcut function keys and quickly call them out.
15.6” LCD, Full HD 1920×1080 Pixels
The SEETEC ATEM156 is equipped with a 15.6 inch IPS LCD panel. The IPS LCD panel itself has a resolution of 1920×1080 pixels, a contrast ratio of 800:1, and an LED backlight with a brightness of 250cd/m², giving you an accurate reproduction of video. It incorporates a wide 170° viewing angle in both horizontal and vertical directions. Ease of viewing is ensured by reducing the color change due to viewing angle.
True Color, Professional Color Calibration
Using Rec.709 standard colors SEETEC uses professional Rec.709 HD color standard, and uses color calibration technology, with professional instrument calibration at factory, it can achieve tracking calibration efficiency and accurate color reproduction Color easily, no color distortion, show the real image when you record video.
Accurate Color Reproduction
SEETEC monitor supports ITU standard and HD Video Rec.709 standard matching color space, Advanced image processing technology, so that images are presented clearly, colors are extremely natural, ensuring accurate color reproduction, to reproduce the physical properties of shooting, enabling users to accurately judge the quality of multiple input video signals.
Professional Monitoring Function
SEETEC ATEM156 has put up professional monitoring function according to the actual needs of pre-shoot and post-production to help you improve shooting efficiency. Equipped with 4K HDMI input, it supports Quad view, 2 view, and Single view monitoring function, allowing you to be perfect multi camera surveillance in any location! It contains focus-test functions, such as Peak Focus, Pseudo-Color, and Pixel to Pixel, to aid in sharpening images. It contains Border by function, such as Landmark Center, Landmark Safety, Landmark Grid, to prevent screen clipping in life, leaving right space for other functions in life . It also includes other useful functions like Image Zoom, Field Check, Frozen Image, Color Temperature Adjustment, etc.
Support 4x4K HDMI input.
Meet different screen display needs.

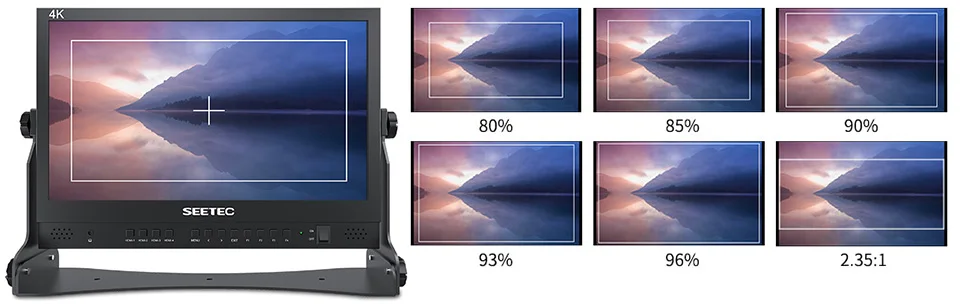

Landmark & Landmark Safety Center
Safety Mark for Search Perspective and Composition (80%, 85%, 90%, 93%, 96%, 4:3, 2.39:1, 2.35:1, 1.85:1). You can switch the Seal color between Red, Green, Blue and White according to different tone of the theme.
Aluminum Metal Frame
The frame of ATEM156 is made from extremely durable and lightweight aircraft grade aluminum, the weight of ATEM156 is as low as 1.57kg (without stand), and this metal material has very strong and durable characteristics, Suitable for intense production such as mobile shooting, location shooting or live broadcast.
Flexible Power Source
The back of the ATEM156 is equipped with a 12V DC power input and a V-mount battery plate. You can connect its 12V DC input for continuous power, or you can install a V-Mount battery charger on the V-Mount Battery disc to realize portable applications. For outdoor shooting, you can use external batteries, and you can connect a standard DC power supply when using it in a warehouse or post-production room.
Attach to Camera Support or Hang Anywhere
There are 3 mounting points located on the U-shaped bracket. Standard size mounting points make it easy to mount and compatible with third-party rigging devices. Using the 1/4 inch hole, you can hang it from the truss or attach it to the camera support, and use it as a monitor for the entire crew. And you can also put it on top of the table for monitoring.
Standard Package Included
1x Mini/Micro HDMI to HDMI Converter Cable, 1x V-Mount Battery Plate, 1x 3A 3A Power Adapter, 1x U-shaped Bracket, 1x User Manual
The ATEM156 is ideal for small streaming programs as it is equipped with a 15.6-inch large screen and has 4 HDMI inputs, you can connect 4 cameras for wide, medium and close-ups.
Live Production Broadcast Screen
ATEM156 is an affordable way to create incredible programs instantly from live events! It is well suited for the use of broadcasting, live sports, concerts, lectures and seminars, eSports and gaming competitions, Web broadcasting, and scripts other. It can meet your indoor and outdoor multi-camera surveillance needs.
